　Hand Pallet Truck & Scale　JZX-DFX series
Abrasives,Power Tools:
Lifting Equipments, Diamond Tools:
Tool Boxes, Car Repair Tools:
Decoration Tools:

Features:

  • The oil pump boby is made bu way of welding the prefabric-ated parts together first,then machining the welded boby.
  • Chrome piston and ram for smooth operation and prevents excseeive wear on the pump & seal.
  • Excellent turning angle of 180 degress facilities.
  • Number of pump strokes-10.Lift height per stroke:11mm.
  • Option:nylon wheel,polyurethane wheel,rubber wheel single fork roller or tandem fork roller.
  • Remark:(1) Capacity 2000/3000kg available.
              (2) Special size for width and length can be made according to customer's requirement.

    Main specifications:
    Model   DF
    Capacity Q(kg) 2500 2500
    Service weight kg 65-77 65-77
    Steering wheel mm φ180 φ180
    Fork wheel mm φ80 φ74
    Max. lift height h3(mm) 115 115
    Total height h14(mm) 1233.5 1223.5
    Lowered fork height h13(mm) 85 75
    Overall length l1(mm) 1528.5/1598.5 1528.5/1598.5
    Fork dimensions s/e/l 53/160/1150(1220) 53/160/1150(1220)
    Distance between fork-arms b5(mm) 520/550/685 520/550/685
    Ground clearance,centre of wheelbase m2(mm) 32 22
    Aisle width for pallets 1000x1200 crossways Ast(mm) 1728.5/1798.5 1728.5/1798.5
    Aisle width for pallets 800x1200 lengthways Ast(mm) 1778.5/1798.5 1778.5/1798.5
    Turning radius Wa(mm) 1244.5/1314.5 1244.5/1314.5



    		•
    Others
    		Hand Pallet Truck & Scale
    JZX-BF series
    		Hand Pallet Truck & Scale
    JZX-AC seriees
    		Hand Pallet Truck & Scale
    JZX-DF series
    		Hand pallet truck
    JZX-NF
    		Hand pallet truck
    JZX-SYBC
    		Quick lift pallet truck
    JZX-BFQ
    		Quick lift pallet truck
    JZX-ACF series
    		Pallet truck with brake system
    JZX-BFB
    		Traverse pallet truck
    JZX-BFT

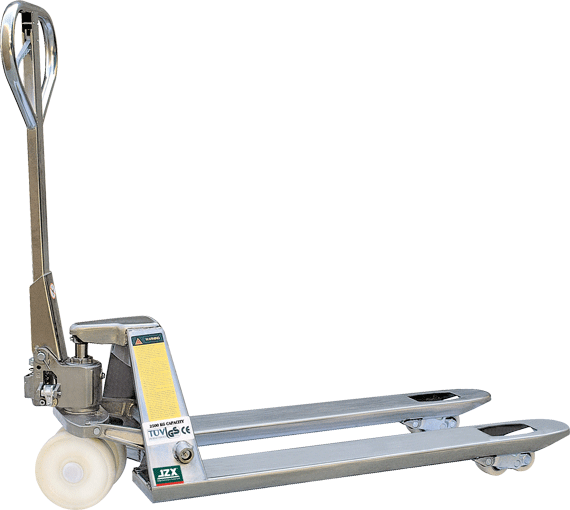

    		Stainless steel pallet Truck
    JZX-BFS

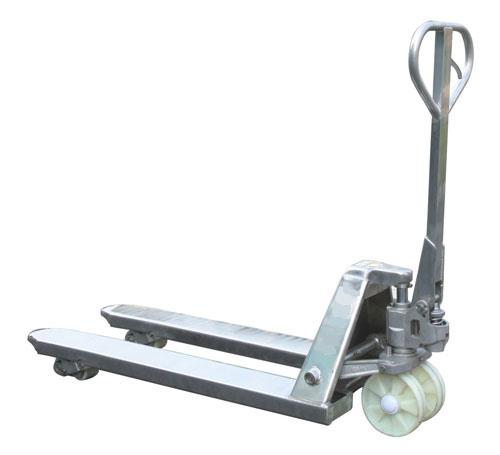

    		Stainless steel pallet Truck
    JZX-ACS

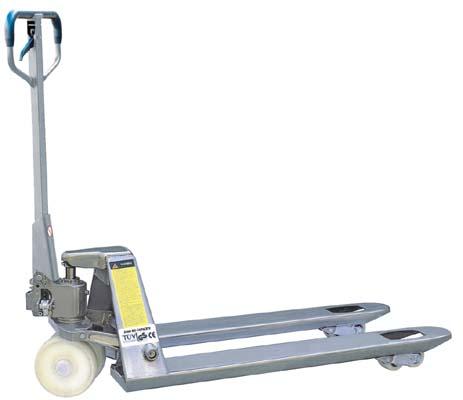

    		Galvanized pallet truck
    JZX-BFG
    		Galvanized pallet truck
    JZX-ACZ
    		Scale paller truck with printer
    JZX-BFC series

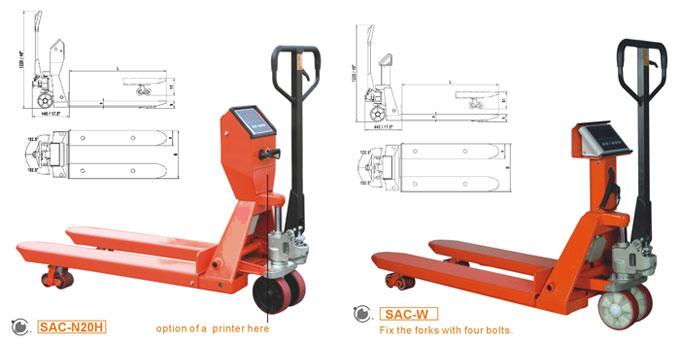

    		Hand Pallet Truck & Scale
