　Traverse pallet truck　JZX-BFT
Abrasives,Power Tools:
Lifting Equipments, Diamond Tools:
Tool Boxes, Car Repair Tools:
Decoration Tools:
Features:

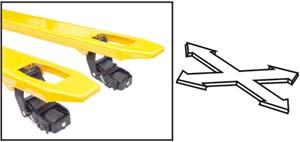

  • Designed for moving long loads down narrow aisles.
  • Traverse movement can be made by first adjusting the truck height to over 180mm (swing the handle up and down 8 times or so), then turning the handle by an angle of 90 degrees.
  • Traverse movement provides more flexibility and convenience to expand the application range of the truck.
  • Load capacity: 2500kg/1500kg(Traverse move)
  • Main specifications:
    Model   BFT
    Capacity Q(kg) 2500/1500(Traverse)
    Service weight kg 65-85
    Steering wheel mm φ200/φ190
    Fork wheel mm φ80/φ74
    Max. lift height h3(mm) 115
    Total height h14(mm) 1224
    Lowered fork height h13(mm) 85/75
    Overall length l1(mm) 1533/1603
    Fork dimensions s/e/l 45/160/1150(1220)
    Distance between fork-arms b5(mm) 520/550/685
    Ground clearance,centre of wheelbase m2(mm) 40
    Aisle width for pallets 1000x1200 crossways Ast(mm) 1733/1803
    Aisle width for pallets 800x1200 lengthways Ast(mm) 1783/1803
    Turning radius Wa(mm) 1266/1336
    		•
